What is FABLAB

A FabLab is a technical platform for STEAM (Science, Technology, Engineering, Arts, and Mathematics) education, workforce development and business idea prototyping that allows students to explore the entire engineering design process in a real world context.

FABLABs provide tools that enable students to go from concept to drawing, models to prototype, and redesign to final product.There are 400 FABLAB locations in the U.S. and 1,800 worldwide. The FABLAB Jackson County is the first in Mississippi.



EQUIPMENT IN THE LAB

A FABLAB consists of a suite of digital fabrication and rapid prototyping machines, including a large computer numerical control (CNC) router (the ShopBot), a vinyl cutter, a laser engraver, an electronics work bench, a 3D printer, and the accompanying computers and software for design, programming, and machine communications. This equipment allows students to use computer-aided design to make almost anything they can imagine. FABLABs across the world share the same foundation of machines and processes and are linked through video conferencing and online tools.

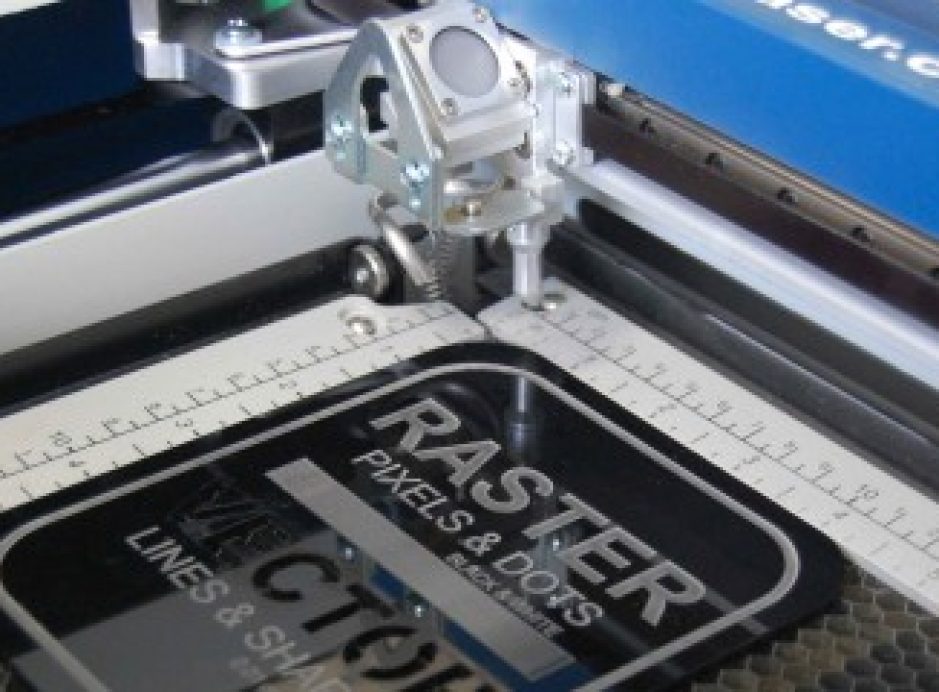

EPILOG LASER MINI

  • EPILOG LASER MINI

    LASER ENGRAVER
    These machines perform two major functions: rastering and vectoring. Rastering involves marking the surface of a material with intense heat through the use of the images’ pixels. It’s similar to printers where it prints on a page from top to bottom. Vectoring involves cutting at a high frequency completely through a piece of material. It will start at one point of your image, leave the laser on and continue on the line, tracing the entire image while following a tool path. Materials you can use for this machine vary from wood, glass, stone, plastic, or even metal.

    Software used: Adobe Illustrator, CorelDraw, Inkscape

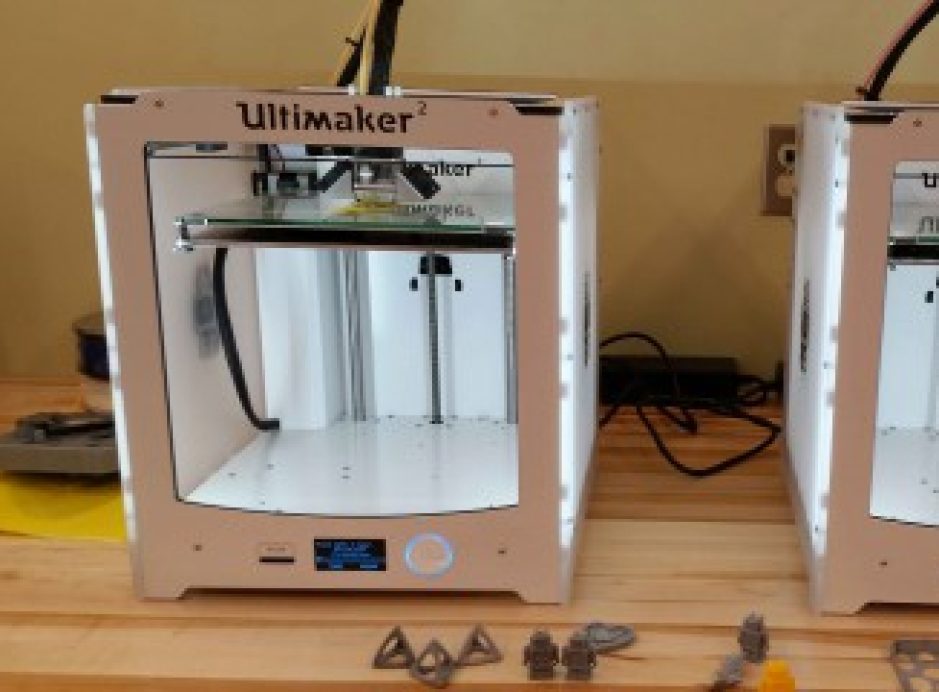

ULTIMAKER 2

  • ULTIMAKER 2

    3D PRINTER
    This machine begins by first designing a 3D model from a specialized modeling software. The geometric information from the digital model is then computed into instructions for tool paths (CNC). Plastic filament is loaded onto the back of the machine and is pulled in by a motor. The plastic goes through a heating element where it melts to a certain degree and finally squirts out from a nozzle to form your 3D model.

    Software used: 123D Design, Google Sketchup, Rhino, Tinkercad

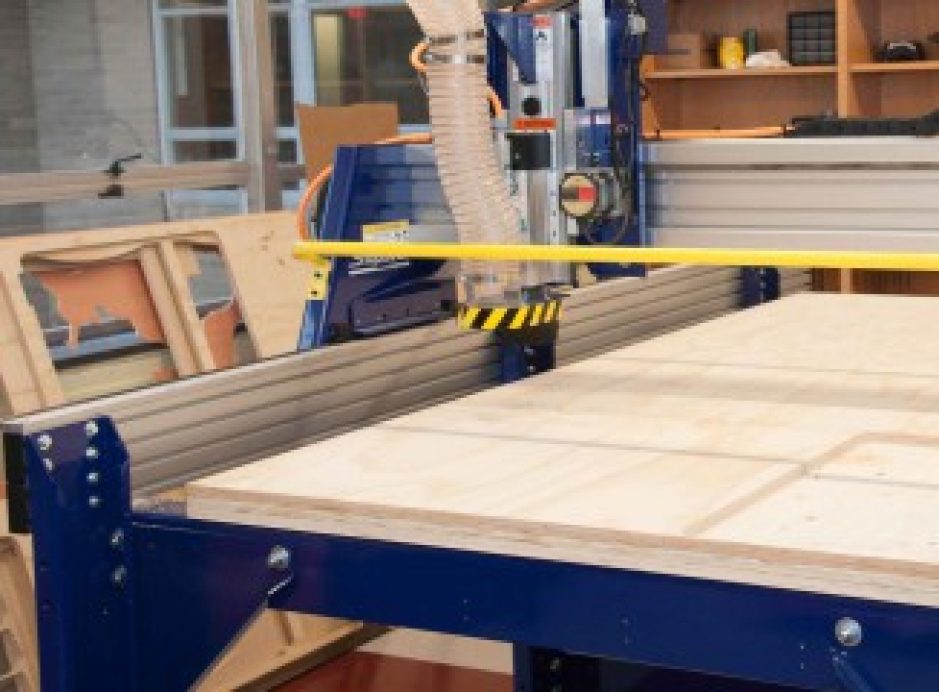

SHOPBOT 4X8

  • SHOPBOT 4X8

    COMPUTERIZED NUMERICAL CONTROL (CNC) MILLING MACHINE
    Think of this machine as your typical wood router. What makes this machine unique though is that it will input commands from your computer-aided design (CAD) or computer-aided manufacturing (CAM) software and order itself to cut or carve out any 2D/3D shapes you design. It’s a variety of rotating metal bits that runs on a high revolutions per minute to manipulate a number of forgivable materials (woods, plywood, plastic, etc.).

    Software used: VCarve Pro

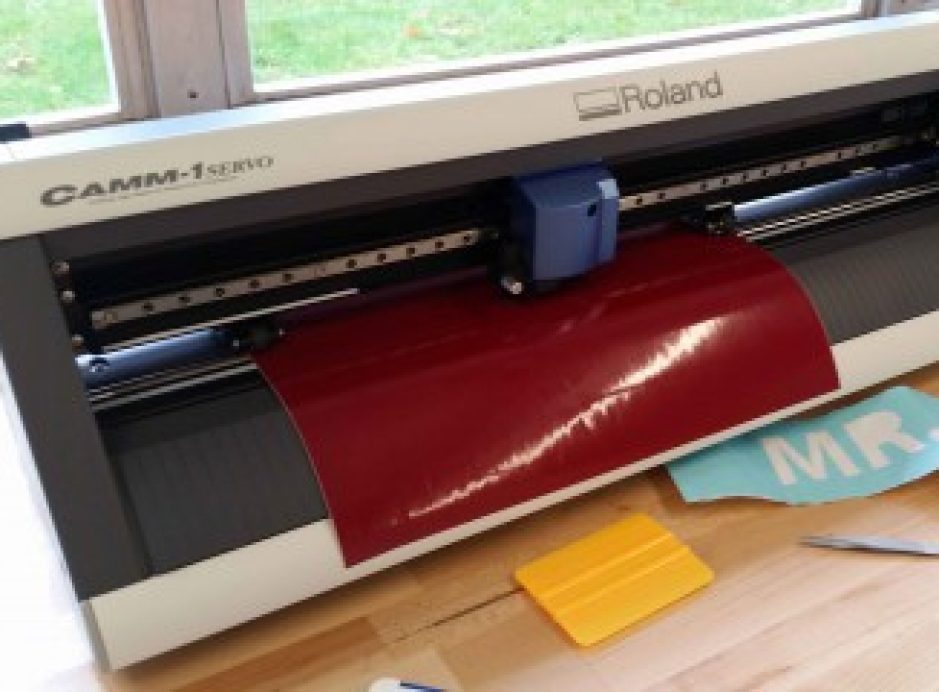

ROLAND CAMM GX-24

  • ROLAND CAMM GX-24

    VINYL CUTTER
    Vinyl cutters are an essential machine for graphic designing. Students will use their design skills to manipulate photos, shapes, and other images to create Vinyl adhesives. First, a large roll of specifically colored vinyl is loaded onto the back of the machine. After the design is uploaded to the machine, then it will use a small blade to cut out the desired shapes from the roll. Lastly, the students will peel away the backing and properly install it onto a desired material (windows, walls, etc.)

    Software used: Adobe Illustrator, CorelDraw, Inkscape
